GE IS220PDIOH1A 控制器模块

GE IS220PDIOH1A是通用电气（GE）公司为Mark VIe Speedtronic系列设计的分立式输入/输出模块，在工业自动化控制系统中具有重要作用。

### 功能特点

- **信号处理**：可接受多达24个触点输入，能管理多达12个继电器输出，并可获得特定于端子板的反馈信号，实现了数字信号的采集、处理与控制信号的输出。

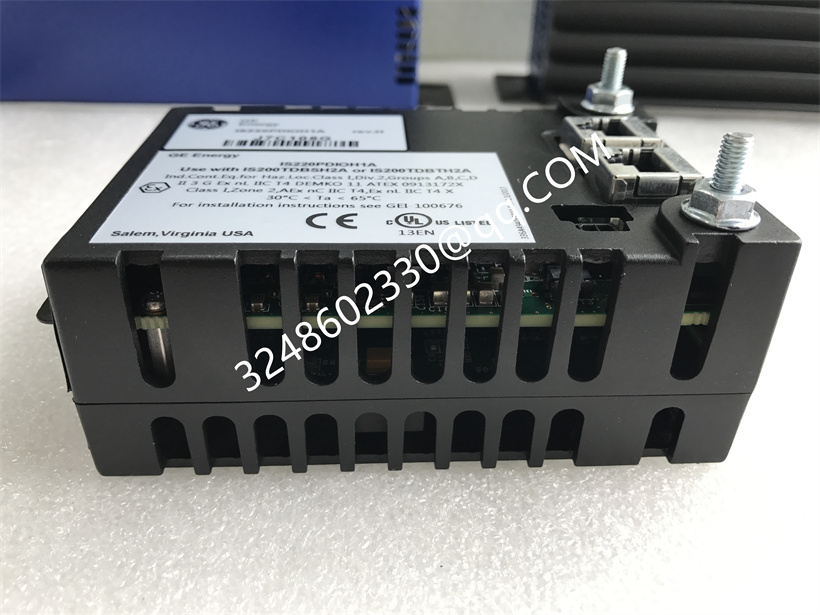

- **电气接口**：三针电源输入为模块提供电力，两个RJ45以太网连接器用于实现与其他设备的高速数据传输和网络连接，DC - 62连接器则直接连接到相应的端子板连接器，负责离散信号的输入和输出。

- **诊断功能**：前面板设有LED指示灯，用于显示视觉诊断信息，包括以太网端口状态、电源状态、“attn”状态以及继电器连接状态等，方便工作人员快速了解模块的工作情况，及时发现和解决问题。

- **内置处理器**：每个Mark VIe以太网I/O包或模块共享一个处理板，包含具有闪存和RAM的快速CPU，具备硬件复位电路和看门狗定时器，还拥有内部温度传感器，以及通过电子方式读取其他板上ID的能力。

### 技术规格

- **输入隔离**：封装内输入光隔离至1500V。

- **输入滤波器**：采用硬件滤波器，滤波时间为4ms。

- **交流电压抑制**：具备60V rms的交流电压抑制能力。

- **中继指令通道数**：12个。

- **输入通道数量**：24个DI（数字输入）和12个C型。

- **工作温度**：0至60°C。

- **尺寸**：15.875厘米高×10.795厘米宽。

### 应用领域

- **电力行业**：在发电厂中，用于燃气轮机、蒸汽轮机等设备的控制和监测，可采集设备运行的各种状态信号，如温度、压力、转速等，并根据控制逻辑输出相应的控制信号，实现对机组的精确控制和保护。

- **石油化工行业**：应用于石油化工生产过程中的各种泵、压缩机等设备的控制，以及生产流程的自动化控制，通过采集现场设备的状态信号和控制阀门、电机等设备的运行，确保生产过程的安全、稳定和高效。

- **其他工业领域**：在制造业、水处理、交通运输等行业的工业自动化控制系统中也有广泛应用，可实现对各种生产设备和工艺流程的监测和控制，提高生产效率、产品质量和系统的可靠性。

### 安装与操作

- **安装**：需牢固安装选定的端子板，将端子板连接器直接连接到PDIO I/O包，使用以太网端口旁边的螺纹螺柱以机械方式固定电池组，根据机器设置连接一根或两根以太网线，并将电池组一侧的连接器连接到电源。

- **操作**：施加输入电源时，软启动电路使处理器板上的可用电压上升，处理器复位关闭，本地电源按顺序打开。完成自检程序后，处理器从特定于I/O包或模块类型的闪存中加载应用程序代码，验证应用代码、采集板和端子板是否正确匹配。匹配良好时，处理器通过请求网络地址启动以太网连接，以太网启动后，CPU运行应用程序，对板载逻辑进行编程，并允许采集板开始工作。

GE IS220PDIOH1A is a discrete input/output module designed by General Electric (GE) for the Mark VIe Speedtronic series, which plays an important role in industrial automation control systems.

###Functional Features

-* * Signal Processing * *: Can accept up to 24 contact inputs, manage up to 12 relay outputs, and obtain feedback signals specific to the terminal board, achieving digital signal acquisition, processing, and control signal output.

-* * Electrical Interface * *: The three pin power input provides power to the module, and two RJ45 Ethernet connectors are used to achieve high-speed data transmission and network connection with other devices. The DC-62 connector is directly connected to the corresponding terminal board connector, responsible for the input and output of discrete signals.

-Diagnostic function: The front panel is equipped with LED indicator lights to display visual diagnostic information, including Ethernet port status, power status, "attn" status, and relay connection status, making it convenient for staff to quickly understand the working status of the module and promptly discover and solve problems.

-* * Built in processor * *: Each Mark VIe Ethernet I/O pack or module shares a processing board, which includes a fast CPU with flash and RAM, hardware reset circuit and watchdog timer, internal temperature sensor, and the ability to read IDs on other boards electronically.

###Technical specifications

-* * Input isolation * *: The input light inside the package is isolated to 1500V.

-* * Input Filter * *: Hardware filter is used, with a filtering time of 4ms.

-AC voltage suppression: Capable of suppressing AC voltage at 60V rms.

-Number of relay command channels: 12.

-Number of input channels: 24 DI (digital input) and 12 C-type.

-* * Working temperature * *: 0 to 60 ° C.

-* * Size * *: 15.875 centimeters high x 10.795 centimeters wide.

###Application Fields

-In the power industry, it is used for controlling and monitoring equipment such as gas turbines and steam turbines in power plants. It can collect various status signals of equipment operation, such as temperature, pressure, speed, etc., and output corresponding control signals according to control logic to achieve precise control and protection of the unit.

-Petrochemical industry: Used for the control of various pumps, compressors and other equipment in the petrochemical production process, as well as the automation control of production processes. By collecting status signals of on-site equipment and controlling the operation of valves, motors and other equipment, the safety, stability and efficiency of the production process are ensured.

-* * Other industrial fields * *: It is also widely used in industrial automation control systems in manufacturing, water treatment, transportation and other industries, which can achieve monitoring and control of various production equipment and process flows, improve production efficiency, product quality and system reliability.

###Installation and operation

-* * Installation * *: It is necessary to firmly install the selected terminal board, connect the terminal board connector directly to the PDIO I/O pack, use the threaded bolt next to the Ethernet port to mechanically fix the battery pack, connect one or two Ethernet cables according to the machine settings, and connect the connector on one side of the battery pack to the power supply.

-Operation: When applying input power, the soft start circuit increases the available voltage on the processor board, resets the processor, and turns on the local power supply in sequence. After completing the self-test program, the processor loads application code from flash memory specific to the I/O pack or module type, verifying that the application code, acquisition board, and terminal board are correctly matched. When the match is good, the processor initiates the Ethernet connection by requesting the network address. After the Ethernet is started, the CPU runs the application program, programs the onboard logic, and allows the acquisition board to start working.
