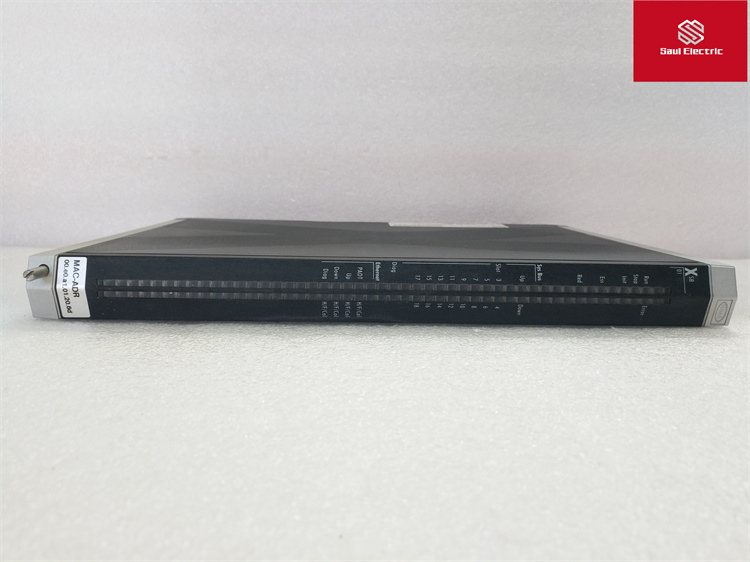

HIMA 黑马 X-SB01 985210207 嵌入式运动控制器

HIMA 黑马 X-SB01 985210207 嵌入式运动控制器概述

HIMA 黑马 X-SB01 985210207 是一款嵌入式运动控制器，它集成了计算机数字控制技术、ARM技术、运动控制技术以及嵌入式操作系统技术等先进技术。这款控制器是针对低成本、高性能运动控制器研究的一种新的尝试。

功能特点

HIMA 黑马 X-SB01 985210207 控制器的主要功能包括：

高速、稳定的信息交互：该控制器采用了一种基于双端口RAM通讯结构的上下位机交互方式，实现了上下位机信息的高速、稳定通讯。

轨迹规划算法：针对高速数控加工轨迹规划中存在的关键问题，该控制器提出了一种轨迹拐角的速度平滑方法和一种高速数控加工小线段的前瞻平滑算法。

系统软件构建：构建了适合本运动控制器系统的系统软件，并研究了嵌入式运动控制器引导程序的移植、嵌入式Linux内核的优化配置以及根文件系统的构建。

外设驱动程序开发：探讨了Linux驱动程序开发的原理以及流程，并以双端口RAM为例介绍了运动控制外设驱动程序开发的方法。

模块化设计：HIMA 黑马 X-SB01 985210207 控制器采用模块化设计，如果变更生产工艺或设施，还可以灵活地调整安全系统。每个模块都是独立的，可以在非常短的时间内完成安装。

控制三相交流异步电机：该控制器主要用于控制和调节三相交流异步电机的速度，并以其稳定的性能、丰富的组合功能、矢量控制技术、低速高转矩输出、良好的动态特性及过载能力，在变频器市场占据着重要的地位。

应用场景

HIMA 黑马 X-SB01 985210207 嵌入式运动控制器适用于需要高精度和高可靠性的工业自动化控制领域，特别是在石油化工、电力、冶金、建材等行业，它可以应用于自动化的生产线、机器人系统、无人机等设备中，实现精准的运动控制和安全保障。

HIMA Dark Horse X-SB01 985210207 Embedded Motion Controller Overview

HIMA X-SB01 985210207 is an embedded motion controller that integrates advanced technologies such as computer digital control technology, ARM technology, motion control technology and embedded operating system technology. This controller is a new attempt for the research of low cost and high performance motion controller.

Functional characteristics

The main functions of the HIMA X-SB01 985210207 controller include:

High speed and stable information exchange: The controller adopts a kind of upper and lower computer interaction mode based on dual-port RAM communication structure, which realizes high speed and stable communication of upper and lower computer information.

Trajectory planning algorithm: Aiming at the key problems in trajectory planning of high-speed CNC machining, the controller proposes a velocity smoothing method for trajectory corners and a prospective smoothing algorithm for high-speed CNC machining small line segments.

System software construction: The system software suitable for this motion controller system is constructed, and the transplantation of embedded motion controller bootstrap program, the optimization configuration of embedded Linux kernel and the construction of root file system are studied.

Peripheral driver development: This paper discusses the principle and flow of Linux driver development, and introduces the method of motion control peripheral driver development by taking dual port RAM as an example.

Modular design: The HIMA X-SB01 985210207 controller has a modular design that also allows flexibility to adjust the safety system if the production process or facility is changed. Each module is self-contained and can be installed in a very short time.

Control three-phase AC asynchronous motor: The controller is mainly used to control and adjust the speed of three-phase AC asynchronous motor, and with its stable performance, rich combined functions, vector control technology, low speed and high torque output, good dynamic characteristics and overload capacity, in the inverter market occupies an important position.

Application scenario

HIMA X-SB01 985210207 Embedded motion controller is suitable for industrial automation control fields requiring high precision and high reliability, especially in petrochemical, electric power, metallurgy, building materials and other industries, it can be applied to automated production lines, robot systems, drones and other equipment. Achieve precise motion control and safety.
